5 Things a Floor Plan Tells You Before You Buy a Home

Before we get to the 5 things, let me explain what a floor plan actually is — because once you understand this, everything else becomes obvious.

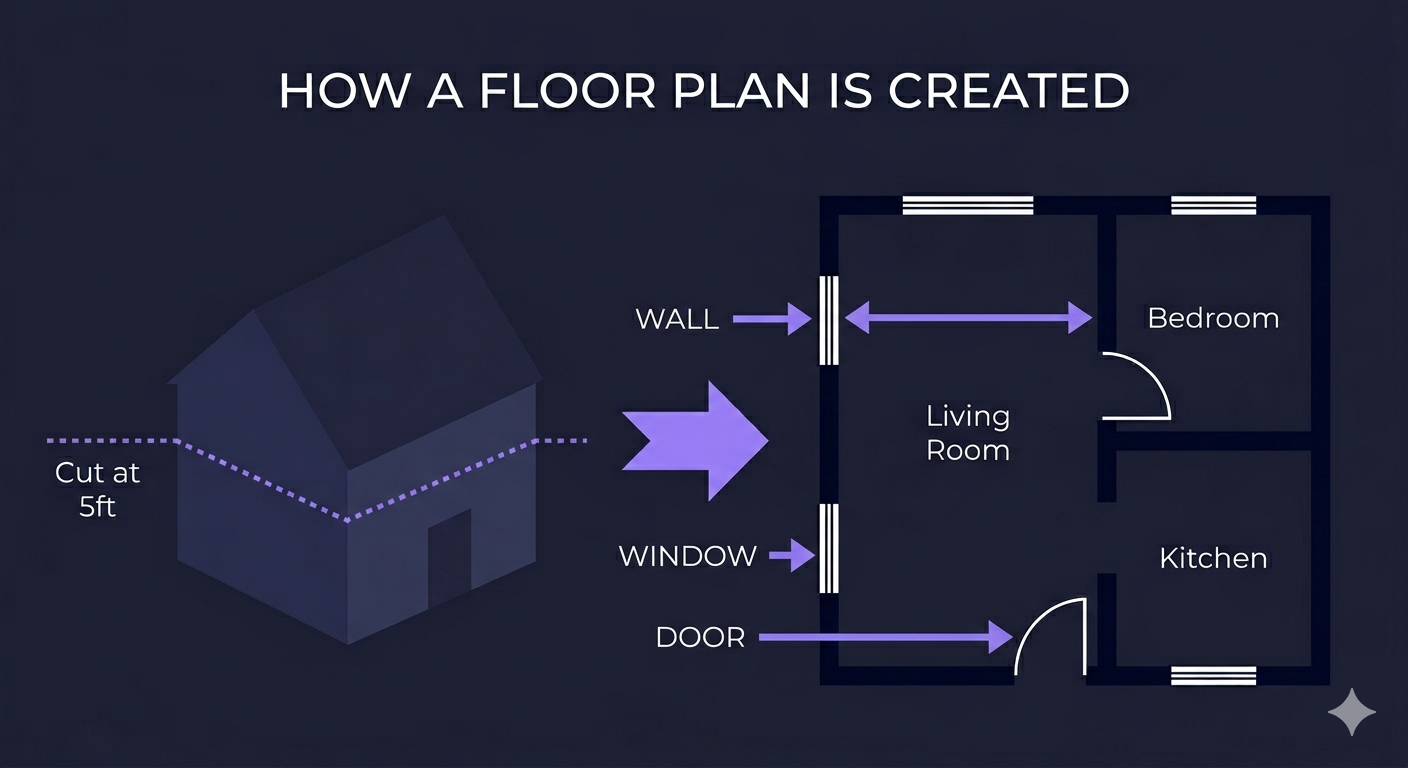

Imagine your home being cut horizontally at a height of about 5 feet from the floor — like slicing a cake sideways. The upper part is removed. Now you look down at what remains. That is exactly what a floor plan shows you. Everything that gets cut at that level — walls, windows, doors — appears as a dark line or marking on the paper.

A floor plan is simply a top-down view of your home after an imaginary horizontal cut at 5 feet — showing walls, windows and doors exactly as they appear on the builder's plan.

With that understanding, here are the 5 things you should be reading — not just seeing — on any floor plan.

1 The Walls — and What They Will Be Made Of

The thick dark lines forming rectangles on the plan are your walls. The name of the room is written at the centre of each rectangle — Bedroom 1, Kitchen, Living Room, and so on.

Most buyers look at the room name and move on. That is a mistake. The question you should be asking at this moment is — what material is going into these walls?

Brick, AAC block, fly ash block — these all look identical on a floor plan but behave very differently in terms of heat insulation, sound insulation, and structural strength. At the time of possession, all you will see is a plain plastered and painted wall. By then, it is too late to ask.

2 The Windows and Doors — Your Light and Air

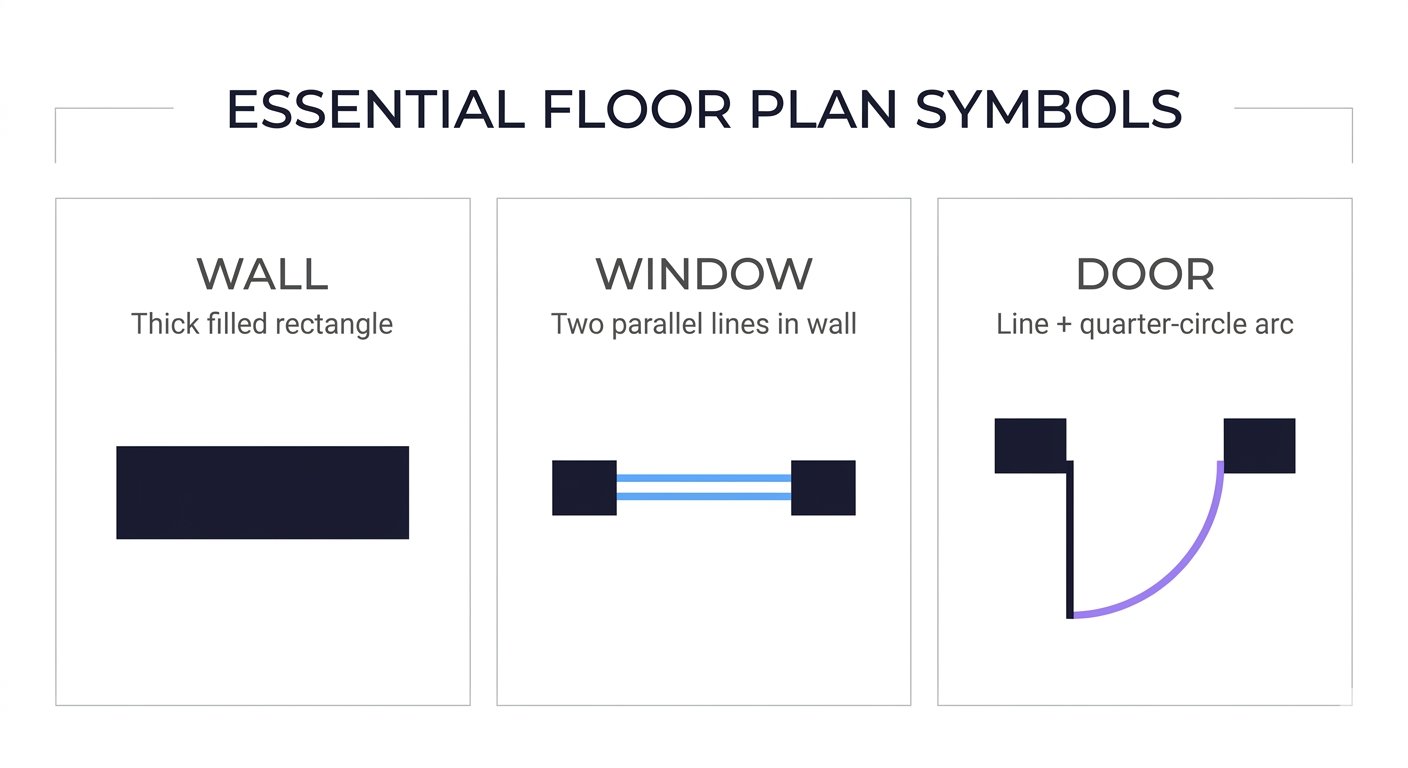

Two thin parallel lines connecting the walls are windows. The curved line forming a sector shape between the walls is a door — it shows you which direction the door swings open.

These three symbols are all you need to read any floor plan. Once you recognise them, the entire plan becomes readable in minutes.

This is where most buyers lose crores of rupees without realising it. The number of windows, their size, and which direction they face determines how much natural light and ventilation your home will receive — every single day for the next 30 years.

A bedroom with one small north-facing window will feel dark and closed in winter. A kitchen with a west-facing window will receive harsh afternoon sun and heat throughout summer. These are not preferences — they are daily quality of life decisions embedded in those two thin lines on the plan.

The curved arc of a door on the plan also tells you something else — how much floor space that door consumes when open. A door swinging into a small toilet can block half the usable space. A bedroom door swinging into the wardrobe creates a daily inconvenience for years.

Here is something worth knowing. Ask the builder specifically for the sizes of three doors — the main entrance door, the bedroom door, and the toilet door. These three are always different sizes and it is useful to have this information before your site visit.

A standard main door is typically 4 feet wide. A bedroom door is around 3 feet. A toilet door is often as narrow as 2 feet — which becomes a serious problem for elderly family members or anyone with a disability.

3 The Furniture Layout — Does It Actually Fit Your Life?

After reading the room names you will notice small shapes drawn inside each room. These are furniture shown from above — a bird's eye view. A wardrobe cut horizontally will show the hanging rods inside it. A bed will appear as a rectangle with a smaller rectangle for the headboard. A dining table will show chairs arranged around it.

This is the builder's proposed furniture arrangement. It is designed to make the room look spacious and well-organised on paper. It may not reflect your actual furniture or your actual life.

Here is something most buyers do not know. Every registered project in India is required to submit its floor plans to the RERA website of that state. These RERA plans do not show any furniture — they show only the actual walls, doors and windows. This is the real plan based on which you will receive your home.

Go to your state's RERA website. Search the project name. Download the floor plan from there. What you see is the plan without any furniture — giving you a clearer picture of the actual room sizes.

When you compare the RERA plan with the builder's presentation plan, ask yourself:

— Does the room still look adequate without furniture drawn in?
— Are the dimensions on the RERA plan consistent with what was explained to you?
— Does the room size on the RERA plan match your expectations?
— Does your actual bed size fit with space to walk around all three sides?
— Can you open the wardrobe fully without it hitting the bed?
— Is there space for a study table, an elderly parent's cot, or a newborn's cradle?

4 The Functional Spaces — Kitchen, Toilet, Bathroom

This is the most critical dimension check on any floor plan — and the one most buyers completely ignore.

Most people look at the kitchen and bathroom on a plan and judge by eye — big or small, acceptable or not. But that visual judgement is almost always wrong because you are looking at an empty box on paper.

Here is what architects actually do. Before visiting the site, make a list of every appliance and fixture you intend to use — based on your actual lifestyle. Not a generic list. Your list.

For the kitchen:
— Refrigerator — what size and where will it stand?
— Washing machine — front load or top load, and where does it go?
— Microwave, OTG or oven — counter space or dedicated shelf?
— Chimney — does the kitchen have a window or shaft for venting?
— Water purifier — counter or wall mounted, and is there a drain nearby?
— Dishwasher — if you plan to add one, is there space and plumbing provision?

For the bathroom and toilet:
— Geyser — electric or gas, and is there provision in the right location?
— Washing machine if placed in bathroom — is there a drain point?
— Bathtub if desired — very few Indian bathrooms actually accommodate one despite showing it on the plan
— Storage cabinet — is there wall space after all fixtures are placed?

Now take this list to the floor plan. Try to physically place each appliance in the space shown. If your refrigerator is 2 feet wide and the kitchen alcove on the plan is 1.5 feet — you have a problem that no amount of interior design will solve after possession.

5 The Passages and Corridors — Your Lifestyle Space

This is the one that almost every buyer ignores completely — and it is the one that architects pay the most attention to.

The passages, corridors and common areas outside your flat — the lobby on your floor, the lift lobby, the corridor leading to your door — are not just circulation spaces. In Indian residential life, these are cultural spaces.

Neighbours meet here during festivals. Children play in these corridors. Elderly residents sit here in the evenings. Deliveries arrive here. Guests wait here. These spaces contribute enormously to your daily quality of life and your sense of community — far more than any amenity on the ground floor that you may use once a month.

A wide, well-lit corridor with natural ventilation creates a completely different living experience compared to a dark, narrow passage that feels like a hotel corridor.
